YP Series Scotch Yoke Actuators
YP Series Scotch Yoke Actuators

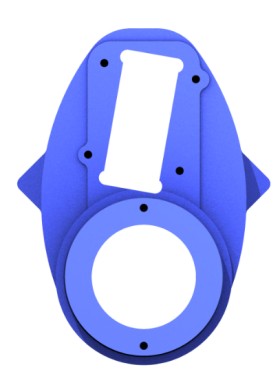

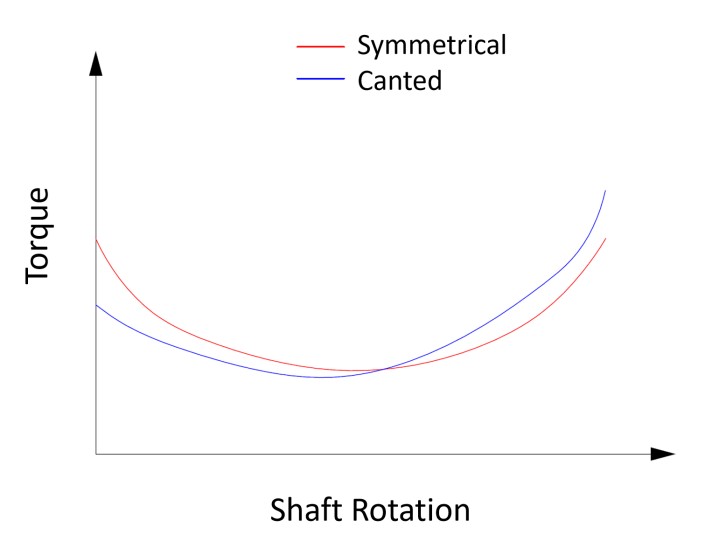

Symmetrical Yoke pneumatic actuators, with a more balanced torque curve, are mainly suitable for ball and plug valves.

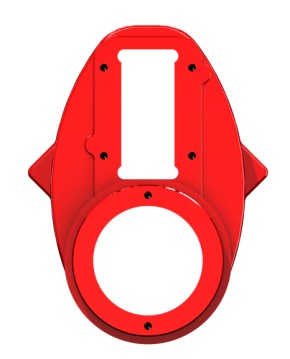

Canted Yoke pneumatic actuator with high starting torque and low running torque for butterfly valves.
Modular Design
ISO Connecting Dimension
IP67 Protection level
NAMUR Mounting
±5° travel range adjustment
Modular design—improves efficiency and safety.
Cost advantage—designed according to valve torque requirements, reducing additional costs.
Reduced maintenance costs—corrosion-resistant internal coating and surface paint.
Improved safety—no risk of accidental spring discharge.

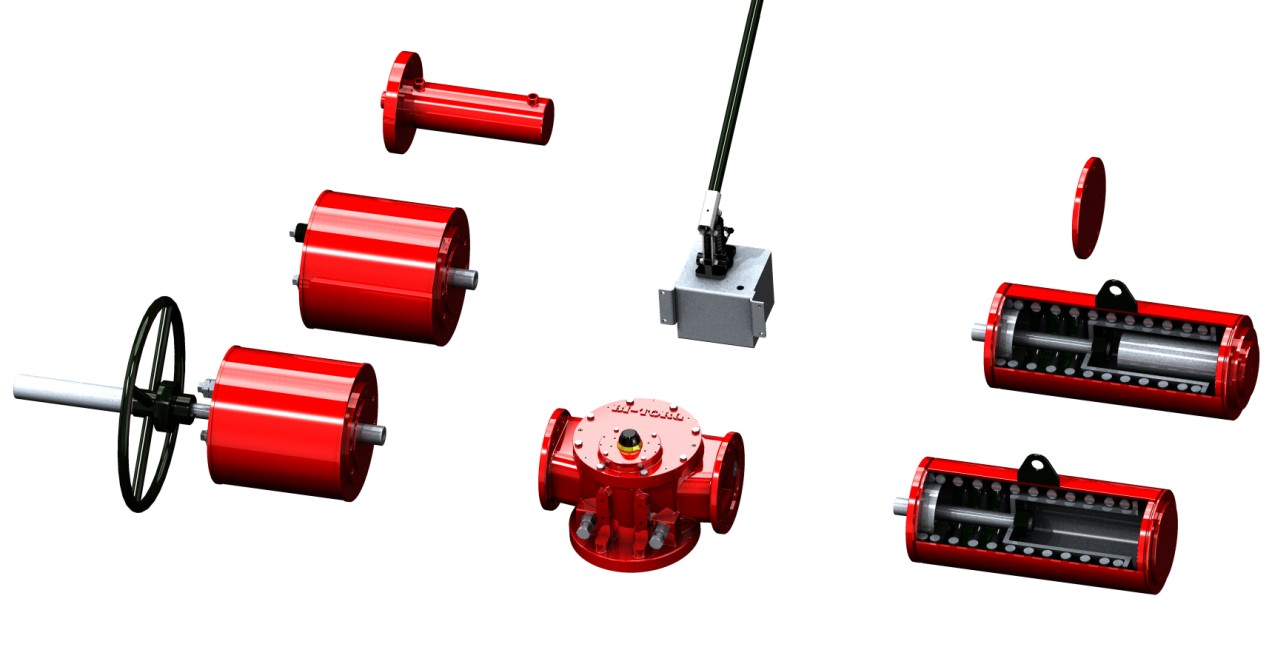

The main categories are: power modules, drive modules and spring modules. They provide the flexibility needed for ever-changing challenges.

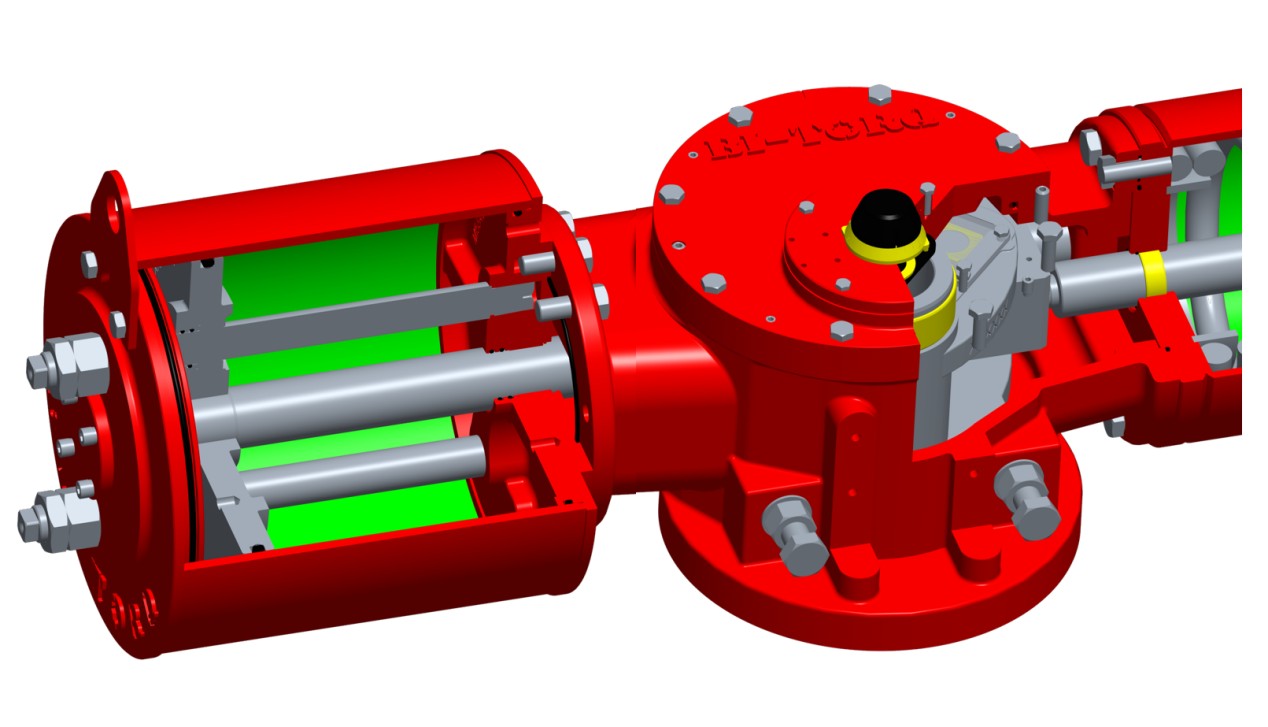

The STARD YP series modular actuators do not have external rods, which prevents rod failure caused by external factors such as corrosion or impact.
The actuators feature protective internal and external coatings to ensure reliable operation in harsh environments.
The copper slider structure improves contact between the pin and track to increase load capacity and wear resistance, extending service life.
STARD modular actuators offer maximum safety for spring-return drives.
In our latest design, the spring does not exert any pressure on the end cap of the actuator. The entire spring module is pre-compressed prior to assembly, effectively preventing the possibility of the compression spring popping out of the spring barrel and causing injury
|
Air Pressure |
3barg~7barg |
|
|
Operating Temperature |
Standard |
-20℃～80℃ |
|
High Temperature |
-20℃～150℃ |
|
|
Low Temperature |
-40℃～80℃ |
|
|
Application Range |
YP series pneumatic actuators are suitable for switching and regulating ball valves, butterfly valves, plug valves of large caliber, and can also be used for other quarter-turn devices. |
|
