Bevel Gearbox Multi-turn Gear Operator
Bevel Gearbox Multi-turn Gear Operator
Connect the bottom flange of the gear operator to the upper flange of the valve and slide the valve shaft into the drive nut. Tighten the flange bolt. The valve can be closed by turning the hand-wheel clockwise and opened by turning the hand-wheel counterclockwise.
? WCB casing
? Welded hand-wheel
? IP67 grade protection
? Bronze nut
? NBR sealing materials
? Suitable for -20℃ ~ 120℃ working conditions
??LCB/LCC Casting
? IP68 grade protection
? Aluminum-bronze worm gear
? Stainless steel input shaft
? Designed with a lock mechanism
|
Model |
Gear ratio |
Thrust Rating Max |
Input Torque |
Output Torque |
Mech.Adv |
weight(Kg) |
Note |
|||
|
Kg |
N |
Kg-m |
N-m |
Kg-m |
N-m |
(±10%) |
||||
|
SBS10 |
2.3:1 |
7061 |
69200 |
11 |
106 |
23 |
220 |
2.1 |
12 |
One-stage drive |
|
SBS20 |
2.35:1 |
11020 |
108000 |
18 |
172 |
37 |
365 |
2.1 |
15 |
|
|
SB-0 |
2.6:1 |
11735 |
115000 |
26 |
252 |
60 |
590 |
2.4 |
20 |
|
|
SB-1 |
3.6:1 |
12245 |
120000 |
30 |
290 |
95 |
930 |
3.2 |
32 |
|
|
SB-2 |
4:01 |
22000 |
220000 |
42 |
414 |
152 |
1490 |
3.6 |
38 |
|
|
SB-3 |
4.1:1 |
26020 |
255000 |
55 |
542 |
204 |
2000 |
3.7 |
52 |
|
|
SB-4 |
5.2:1 |
27040 |
265000 |
73 |
723 |
347 |
3400 |
4.7 |
98 |
|
|
SB-5 |
6.3:1 |
46122 |
452000 |
83 |
810 |
470 |
4600 |
5.7 |
245 |
|
|
SB-6 |
7.11:1 |
83675 |
820000 |
99 |
970 |
632 |
6200 |
6.4 |
310 |
|
|
SGB-0-4.5 |
4.5:1 |
11735 |
115000 |
15 |
148 |
61 |
600 |
4.1 |
27 |
Two-stage drive |
|
SGB-0-7.8 |
7.8:1 |
11735 |
115000 |
13 |
127 |
91 |
890 |
7 |
28 |
|
|
SGB-1-10.9 |
10.9:1 |
12245 |
120000 |
12 |
120 |
122 |
1200 |
10 |
33 |
|
|
SGB-2-12 |
12:1 |
22000 |
220000 |
12 |
120 |
183.7 |
1800 |
9.7 |
51 |
|
|
SGB-2-16.36 |
16.36:1 |
22000 |
220000 |
12 |
120 |
183.7 |
1800 |
15 |
57 |
|
|
SGB-3-12.3 |
12.3：1 |
26020 |
255000 |
15.5 |
152 |
234 |
2296 |
10.4 |
62 |
|
|
SGB-3-16.8 |
16.8:1 |
26020 |
255000 |
15.5 |
152 |
234 |
2296 |
15.1 |
67 |
|
|
SGB-4-28.8 |
28.8:1 |
27040 |
265000 |
16.5 |
162 |
429 |
4200 |
25.9 |
112 |
|
|
SGB-5-63 |
63:1 |
46122 |
452000 |
14 |
135 |
781 |
7652 |
56.7 |
238 |
|
|
SGB-6-71.1 |
71.1:1 |
83675 |
820000 |
21.5 |
211 |
1378 |
13500 |
54 |
304 |
|

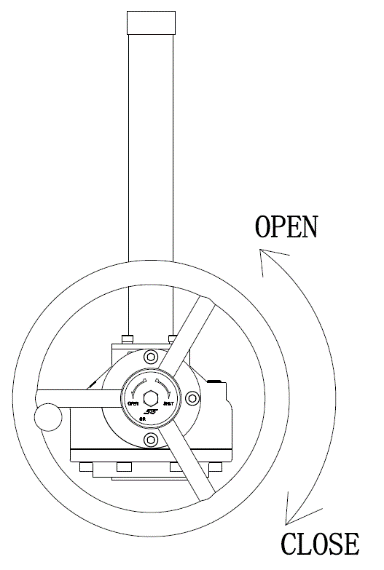

Turn the handwheel or input shaft to open or close the valve
Schematic diagram of manual operation
The range of stroke adjustment can achieve 360° adjustment.
When the gearbox leaves the factory, the sealed inner cavity has been filled with grease?（at room temperature） No. 3 general lithium base grease. The temperature of -20℃~120℃, for the gear box used in special environment such as low temperature, high temperature, will use different grease, such as high temperature grease, low temperature grease. If it is necessary to install the oil cup on the gearbox, please indicate in the order.
